Deployment models

The same SurrealQL, APIs, and client SDKs work across embedded devices, single-node servers, distributed clusters, and managed instances - so you can change how the database runs without rewriting application code.

This page explains the available deployment options, storage engines, and how to choose the right architecture for your workload. For how the query engine and the storage engines fit together, see Architecture.

Deployment models summary

Managed instances

Managed instances provide a fully managed deployment platform built on scalable, fault-tolerant infrastructure. SurrealDB operates the clusters, so your team does not have to.

Plans range from Start (single-node, vertically scalable instances) to Scale (multi-node clusters on distributed storage, minimum three compute units). Start is enough for many workloads; Scale is aimed at business-critical production where a single-node outage would stop the application and where operating HA yourself (Kubernetes, replication, patching, and backups) would otherwise consume platform team time. See Architecture and Pricing.

Features

• •

  Managed SurrealDB infrastructure

• •

  Vertical and horizontal scaling without rebuilding the cluster

• •

  High availability

• •

  Managed backups

• •

  Secure connectivity

• •

  Multi-node distributed architecture on the Scale plan

• •

  Production monitoring and operations

Best for

• •

  Managed infrastructure

• •

  Rapid production deployment

• •

  Scaling applications

• •

  SaaS platforms

• •

  Enterprise workloads

Benefits compared to self-hosting

Single-node

Single-node deployments run SurrealDB as a standalone server process that stores its data on local disk, using SurrealKV (surrealkv://). This is the simplest and most widely used production architecture on disk. Before 4.0, SurrealDB also had a RocksDB engine (rocksdb://), which was the recommended engine at the time. See Moving a RocksDB database to SurrealKV.

Best for

• •

  Small to medium production workloads

• •

  Internal tooling

• •

  Development environments

• •

  Applications without horizontal scaling or built-in cluster fault tolerance

Limitations

• •

  Vertical scaling only

• •

  No built-in distributed fault tolerance

For setup examples, see Run a single-node, on-disk server.

Common deployment methods

CLI

surreal db start surrealkv://path/to/database

Docker

docker run --rm \
  -p 8000:8000 \
  surrealdb/surrealdb:latest \
  start --user root --pass secret surrealkv:/data/database.db

See also Self-hosted for Docker, Kubernetes, and platform guides.

On-disk storage engine

For the startup options of each engine, see Run a single-node, on-disk server and the surreal db start storage parameters.

Moving a RocksDB database to SurrealKV

Available since: v4.0.0

SurrealDB 4.0 has no RocksDB engine, so a server that ran on rocksdb:// moves to SurrealKV when it is upgraded. SurrealKV converts a RocksDB data directory written by SurrealDB the first time it opens it, so the move needs no export and import. Stop the server, take a copy of the data directory, and start it again with the surrealkv:// path in place of rocksdb://:

surreal db start --user root --pass secret surrealkv://path/to/database

The conversion reads the RocksDB tables, blob files and write-ahead log directly, and does not need RocksDB to be installed. A database that ran with versioning enabled keeps its versions and their timestamps, so start SurrealKV with versioned=true as well (for example "surrealkv://path/to/database?versioned=true") to keep answering VERSION queries for them. Any other database keeps the current value of each key, which is everything RocksDB stored for it.

A few more details apply:

• •

  No RocksDB process can have the directory open. The conversion takes the same lock that RocksDB takes, so it cannot start while a RocksDB process is running on the directory.

• •

  The directory needs room for about twice its current size. The new files are written to a staging folder beside the old ones, and the old files are kept afterwards.

• •

  An interrupted conversion is safe. Opening the directory again finishes it, or rolls it back if it had not yet reached the final step.

• •

  The server does not answer until the conversion finishes. The conversion runs while the datastore opens, before the server listens for connections, so /health and /ready cannot be reached for as long as it takes, which grows with the size of the data. Give a liveness probe or a service manager enough time, so that it does not restart the server part-way through and start the conversion again.

• •

  A rocksdb:// path still works. SurrealDB 4.0 accepts rocksdb:// as a deprecated spelling of surrealkv://, opens the directory with SurrealKV, and logs a warning. Change the path to surrealkv:// when convenient.

The diagram below shows the data directory at each step of the conversion.

SurrealKV databases from releases before 1.0 (v0.20 and v0.21) are converted in the same way when they are opened, and keep their versions. A SurrealKV database converted this way cannot be opened by an earlier release.

A RocksDB deployment that was tuned with SURREAL_ROCKSDB_* environment variables or path parameters needs its settings reviewed after the move, because SurrealKV reads none of them. The chart below shows each setting that the two engines read, one square for each, grouped by what it controls. RocksDB had 53 and SurrealKV has 10, not counting the versioned, retention and sync settings that both share. In the SurrealKV rows, a dashed square stands for a RocksDB setting that SurrealKV leaves to the engine, and the dashed square for RocksDB versioning shows how each engine keeps versions. Select a square to see its environment variable, or the reason no setting is needed. The SurrealKV environment variables reference describes each SurrealKV setting.

Converting ahead of time with skv

You do not need a separate tool to convert: starting SurrealDB on the old directory is enough. The skv tool that ships with SurrealKV is for when you want to convert the data ahead of time, before starting the new server. It writes the converted database to a new directory and leaves the original directory unchanged, so the earlier release can still start on it until you switch. Install the tool with cargo install surrealkv-cli, stop the server (the tool refuses a directory that a running server holds), convert the directory into a new one, and then start SurrealDB on the new directory. The tool converts a SurrealKV directory from an earlier release in the same way:

skv migrate path/to/rocksdb-database path/to/surrealkv-database
surreal db start --user root --pass secret surrealkv://path/to/surrealkv-database

The new directory needs as much free space as the data it holds. When SurrealDB starts on it, it still applies its own data migration and switches the datastore to the 4.0 record format, as it does for any datastore from 3.x.

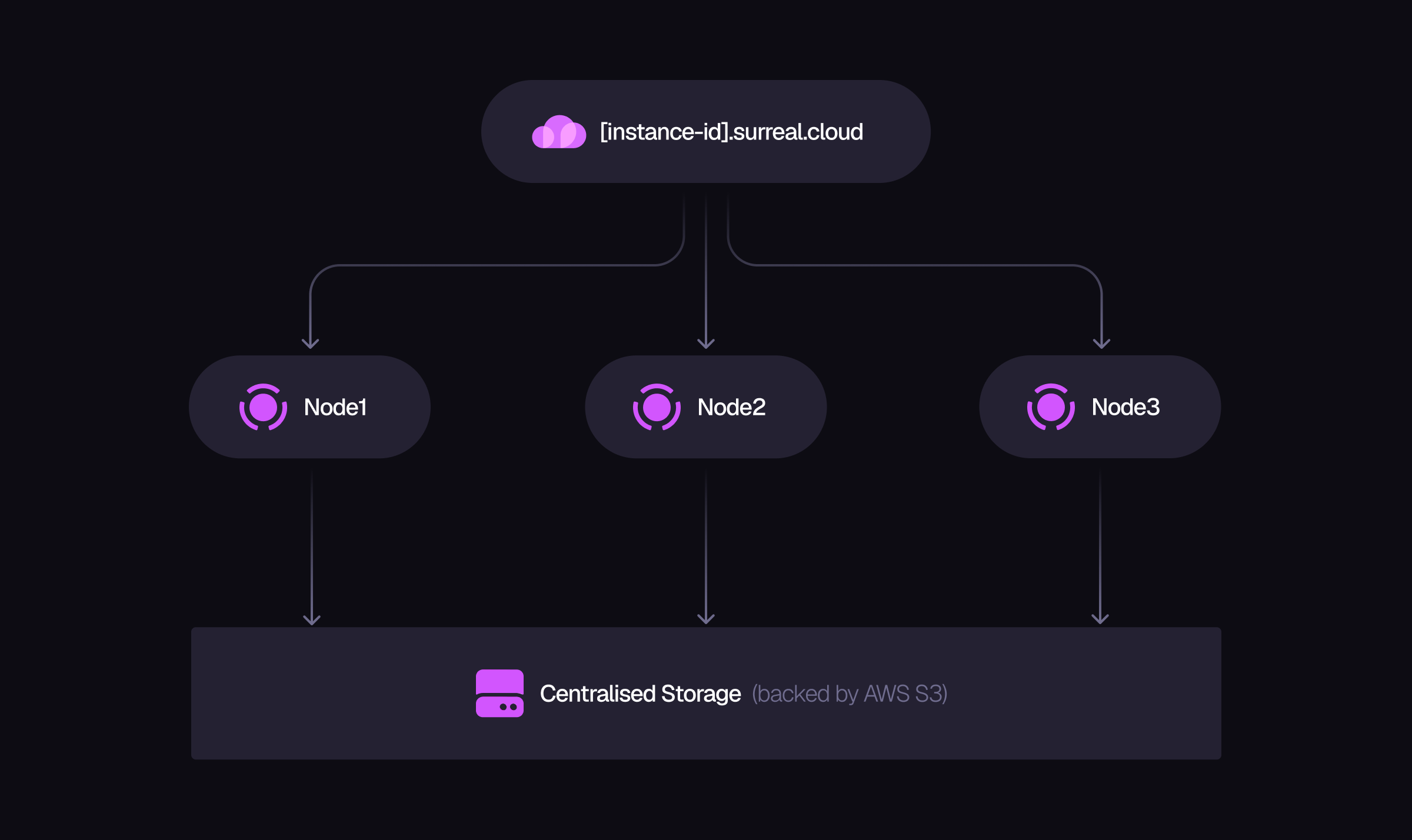

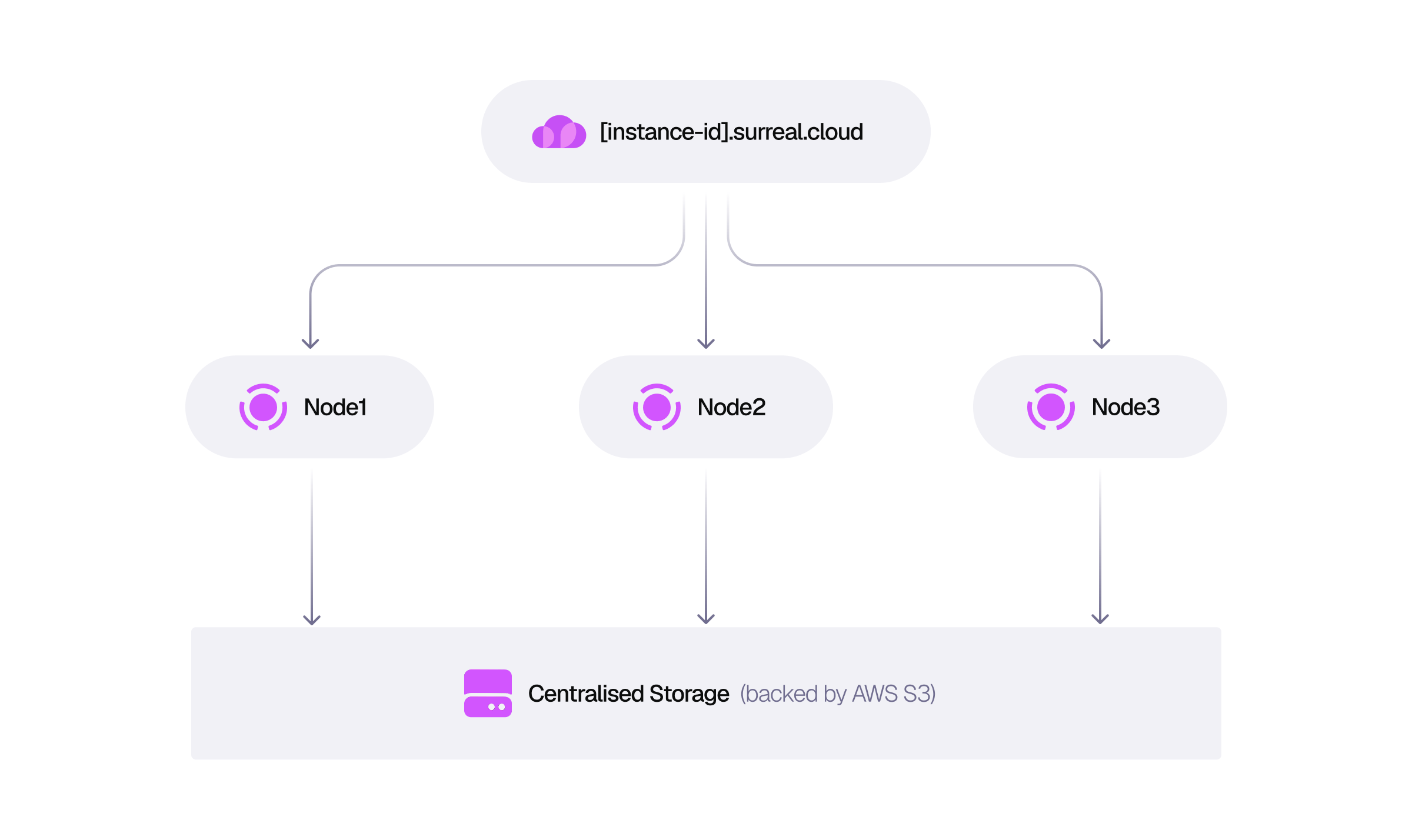

Multi-node clusters

For high availability and horizontal scalability, SurrealDB supports distributed deployments backed by a distributed transactional storage layer built for large-scale clusters.

Architecture

In distributed deployments:

• •

  Several nodes serve queries, so query capacity grows as nodes are added

• •

  The storage layer manages replication, consensus, fault tolerance, and distributed transactions

• •

  Object-storage backing (rolling out on Scale) places transactional data in commodity object storage while frequently accessed data stays on local disk

This architecture enables zero-downtime scaling, resilient clusters, high-throughput workloads, geographically distributed applications, and (as Scale features roll out) database branching, instant replication and recovery, and lower storage costs at scale.

For managed multi-node clusters, use the Scale plan on a managed instance. For self-hosted multi-node clusters, use SurrealDS in SurrealDB Enterprise, on Kubernetes with the operator or on your own machines. In SurrealDS, each node keeps a commit log on its local disk and all nodes keep the data in one object store bucket. See Run a multi-node cluster for how the model itself works.

Features

Horizontal scalability - Add nodes to add query and read capacity. Storage grows separately from the number of nodes.

Fault tolerance - Replication and consensus allow clusters to tolerate node failures.

ACID transactions - Transactions keep their guarantees across nodes. SurrealDS runs them with snapshot isolation by default, or with serializable isolation on request.

Large-scale storage - Designed for very large datasets and high-concurrency production workloads.

Best for

• •

  Enterprise deployments

• •

  High-availability applications

• •

  Systems that must keep serving when a zone fails

• •

  Large graph workloads

• •

  Real-time platforms

• •

  AI-native distributed systems

Operational considerations

Distributed deployments add cluster orchestration, node management, monitoring, and replication management. Teams that want distributed scalability without operating that stack should consider managed instances.

Embedded deployments

Embedded deployments run SurrealDB inside your application process without a separate database server. The query and storage layers share the process (and, in the browser, the same runtime), which removes network latency between your app and the database. This model suits edge computing, mobile and desktop software, offline-first apps, browser PWAs, and AI workflows that need minimal latency.

For language-specific setup, see Embedding SurrealDB and Storage engines.

Supported runtimes

SurrealDB supports embedded operation in Rust, Go, JavaScript / TypeScript, WebAssembly, Python, and .NET. Capabilities vary by SDK and storage backend - check the embedding guide for your language.

Storage options

In-memory (SurrealMX) - Default in-memory backend since SurrealDB 3.0, with optional snapshots or append-only persistence. From 3.3.0 it does not support versioned queries. See Run a single-node, in-memory server.

Choosing the right deployment model

Use a managed instance when

• •

  You want managed infrastructure instead of operating clusters yourself

• •

  You need production-ready HA quickly - especially on the Scale plan for multi-node fault tolerance

• •

  Your team prefers building applications over provisioning servers, Kubernetes, replication, and upgrade runbooks

Use single-node deployments when

• •

  Simplicity matters most

• •

  Scaling requirements are moderate

• •

  You run small-to-medium production workloads without cluster-level fault tolerance

Use multi-node deployments when

• •

  High availability is required

• •

  Workloads need horizontal scaling

• •

  Infrastructure spans multiple nodes or availability zones

For managed clusters, use the Scale plan. For self-hosted clusters, see SurrealDS.

Use embedded deployments when

• •

  You run on edge devices or in the browser

• •

  Offline operation is required

• •

  Minimising latency between app and database is critical
