Using SurrealDB as a Graph Database

A graph database is specifically designed to store data as nodes and edges (relationships between nodes). With this model, connections are front and center, making it easier (and often faster) to query highly connected datasets—like social networks, planning and supply chain relationships, recommendation engines, or fraud detection graphs.

When using SurrealDB as a graph database, we typically care about both the entities in a system and how they relate to each other. It might be a user that “follows” another user, a product that “belongs” to a category, or a web page that “links to” another page. These relationships are first-class citizens, rather than just foreign keys or nested objects. This can enable powerful, intuitive traversal-based queries that more accurately reflect real-world systems.

But how do you “think” in a graph database? Instead of focusing on how to break data into tables (relational) or embed data in documents (document model), you concentrate on expressing data as nodes and defining the edges that describe relationships. This mindset puts the connections at the core of your design: each data point is a node with properties, and edges hold properties too, representing the context or metadata about those relationships.

Core Concepts of Graph-Oriented Modeling

In any graph database, you deal with three fundamental elements:

• Nodes (Vertices): Represent main entities or “things”. In a social network for example, nodes might be people. In a knowledge graph, nodes might be concepts. In a product recommendation engine, nodes might be items or customers.

• Edges: Represent relationships between nodes. These could be follows, buys, likes, friend_of, in_category, etc. They often include properties like timestamps or weights.

• Properties: Both nodes and edges can contain key-value pairs (properties). For a user node, properties might be name or age. For a likes edge, a property might be strength to indicate how strong the affinity between users is.

When you think in a graph, the modeling process shifts toward identifying the main entities in your application (the nodes) and how they relate to one another (the edges). Rather than flattening these relationships into foreign keys or embedding them in nested structures, you give them explicit representation and, often, explicit properties.

Modelling data as a graph

How this works in practice in most graph databases, is through semantic triples, which is a way to describe a graph in a three-part structure:

• subject -> predicate -> object

OR

• node -> edge -> node

Another way to think about this is in terms of nouns connected by verbs, such that it forms a sentence.

• noun -> verb -> noun

OR

• person -> order -> product

Creating Nodes and Edges in SurrealDB

Creating Nodes

In SurrealDB, nodes are typically just records in a table—like users, posts, companies, etc. SurrealDB introduces a new statement called RELATE using this three-part structure.

Using the RELATE statement, we can create our primary relationships based on the major actions a person using our e-commerce store would take: wish list, cart, order and review. These will serve as our edge tables.

RELATE person:billy->wishlist->product:01HGAR7A0R9BETTCMATM6SSXPT;
RELATE person:vanessa->cart->product:01GXRS3FZG8Y8SDBNHMC14N25X;
RELATE person:loki->order->product:tesseract;
RELATE person:u1cczojntb5kvos2ugue->review->product:8g8ftj1mblza2vikm680;

Here, we are taking existing record IDs from the person and product tables. The edge tables stand in the middle of these, which will be newly created via these RELATE statements.

Once we run the RELATE statement, we’ll see two new fields on the edge tables: in and out. The in field contains the ID of the record on the left side of the statement, and out the ID of the record on the right. Another way of looking at the semantic triple is in thus in this three part structure:

• in -> id -> out

Where the first node is called in, the edge is the id, and the second node is out.

Adding data to edge tables using SET and CONTENT

What really sets SurrealDB apart from graph-only databases is that edges are also real tables, and thus allow you to store information in them.

RELATE person:j151lkm3k1dytd53y0i5->wishlist-> product:r5pgmgjmr57kjvm2j1g1
  SET time.created_at = time::now();

CREATE product:crystal_cave SET name = "The Crystal Cave", price = 5;
CREATE person:brian SET address = "555 Brian Street";
RELATE person:brian->order-> product:crystal_cave
  SET quantity = 2;

We can both create our order relationship and use it at the same time to fetch connected data from both the product and person tables.

SELECT
    quantity,
    out.name AS product_name,
    out.price * quantity AS price,
    in.address AS shipping_address
FROM order;

Output
[
  {
    price: 10,
    product_name: 'The Crystal Cave',
    quantity: 2,
    shipping_address: '555 Brian Street'
  }
]

The final query above demonstrates how to access fields directly from an edge table. However, there is also a graph syntax that allows such queries to take place in between nodes and edges, even when starting from a node.

Querying Graph Data in SurrealDB

Graph queries in SurrealDB use SurrealQL, which supports traversing relationships with special syntax. For example:

SELECT ->wrote->post.* AS userPosts
  FROM users:alice;

In this query:

FROM users:alice starts at the node identified by users:alice. ->wrote->posts.* instructs SurrealDB to traverse the wrote edge from alice to any posts node, returning the post(s) as userPosts. The .* at the end retrieves all the fields of linked post records.

You can also traverse in the reverse direction. If you’re starting from a post, you can see which user wrote it:

SELECT <-wrote<-author AS authors
  FROM post:helloworld;

Here, <-wrote<-author means “traverse any node that has a wrote edge pointing to this post”, effectively giving you the authors.

When to use graph relations

The first item to take into account when using graph relations is whether they are the right solution in the first place, because graph edges are not the only way to link one record to another.

SurrealDB has two main ways to create relations between one record and another: record links, and graph relations.

A record link is a simple pointer from one record to another, a link that exists any time a record holds the record ID of another record. Record links are extremely efficient because record IDs are direct pointers to the data of a record, and do not require a table scan.

Take the following example that creates one user who has written two comments.

LET $new_user = CREATE ONLY user SET name = "User McUserson";
-- Create a new comment, use the output to update the user
UPDATE $new_user SET comments += (CREATE ONLY comment SET
    text = "I learned something new!",
    created_at = time::now())
    .id;
UPDATE $new_user SET comments += (CREATE ONLY comment SET
    text = "I don't get it, can you explain?",
    created_at = time::now())
    .id;

Querying a record link is easy as the link by default is unidirectional with nothing in between. In this case, the linked comments are simply a field on a user record and accessing them is as simple as any other field on a user record.

SELECT
    name,
    comments.{ created_at, text }
FROM user;

Output
[
	{
		comments: [
			{
				created_at: d'2024-12-12T02:39:07.644Z',
				text: 'I learned something new!'
			},
			{
				created_at: d'2024-12-12T02:39:07.645Z',
				text: "I don't get it, can you explain?"
			}
		],
		name: 'User McUserson'
	}
]

In earlier versions of SurrealDB, record links were strictly unidirectional. The only way to query in the other direction was by using a subquery, which made graph edges the only easy option for bidirectional links.

SELECT
    *,
    -- Check the `user` table's `comments` field
    -- for the id of the current comment
    (SELECT id, name FROM user WHERE $parent.id IN comments) AS author
FROM comment;

-- Equivalent graph query is much easier
-- to read and write
SELECT
	*,
	<-wrote<-author
FROM comment;

[
	{
		author: [
			{
				id: user:f3t90z8uvns76sr3nxrd,
				name: 'User McUserson'
			}
		],
		created_at: d'2024-12-12T02:39:07.645Z',
		id: comment:gj1vtsd9d19z9afrc14j,
		text: "I don't get it, can you explain?"
	},
	{
		author: [
			{
				id: user:f3t90z8uvns76sr3nxrd,
				name: 'User McUserson'
			}
		],
		created_at: d'2024-12-12T02:39:07.644Z',
		id: comment:zhnbfopxspekknsi6vx6,
		text: 'I learned something new!'
	}
]

Since version 3.0.0-alpha.8, a record link can be bidirectional by defining a field with the REFERENCE clause, allowing referenced records to define a field or use a query to track incoming references.

DEFINE FIELD comments ON user TYPE option<array<record<comment>>> REFERENCE;
DEFINE FIELD author ON comment COMPUTED <~user;

LET $new_user = CREATE ONLY user SET name = "User McUserson";
-- Create a new comment, use the output to update the user
UPDATE $new_user SET comments += (CREATE ONLY comment:one SET
    text = "I learned something new!",
    created_at = time::now())
    .id;
UPDATE $new_user SET comments += (CREATE ONLY comment:two SET
    text = "I don't get it, can you explain?",
    created_at = time::now())
    .id;

-- 'author' field is populated with the 'user' who wrote the comment
SELECT * FROM ONLY comment:one;

-- Regular queries on incoming references work too
SELECT text, <~user.id[0] AS commenter FROM comment;

Output
-------- Query --------

{
	author: [
		user:igi77zrlewsqemgjz4zi
	],
	created_at: d'2025-09-02T02:56:03.408Z',
	id: comment:one,
	text: 'I learned something new!'
}

-------- Query --------

[
	{
		commenter: user:igi77zrlewsqemgjz4zi,
		text: 'I learned something new!'
	},
	{
		commenter: user:igi77zrlewsqemgjz4zi,
		text: "I don't get it, can you explain?"
	}
]

If your use case involves bidirectional links, consider the following items to make a decision.

Record links are preferred if:

• Performance is of the utmost importance.
• You don’t need to put complex queries together.
• You want to specify in the schema what behaviour should take place when a linked record is deleted (cascade delete, refuse to delete, ignore, etc.).

Graph links are preferred if:

• You want to quickly create links without touching the database schema, or among multiple record types. For example, a single RELATE person:one->wrote->[blog:one, book:one, comment:one] is enough to create links between a person and three other record types, whereas using record links may be a more involved process involving several DEFINE FIELD statements.
• You want to put together complex queries that take advantage of SurrealQL’s expressive arrow syntax, like ->wrote->comment<-wrote<-person->wrote->comment FROM person.
• You want to visualize your schema using Surrealist’s designer view.

Finally, graph links are not just preferred but almost certainly necessary if you need to keep metadata about the context in which a link is created. Take the following metadata for the examples above involving a user and its comments which contains information about a user’s current location, operating system, and mood. Where does this data belong?

{
    location: "Arizona",
    os: "Windows 11",
    current_mood: "Happy"
}

This metadata isn’t information about the user as a whole, nor the comment itself. It’s information about the moment in time in which the user and comment were linked, and thus is best stored in a separate table.

Or you might have some information about the link itself, which would also belong nowhere else but inside a graph table.

{
	friends_since: d'2024-12-31T06:43:21.981Z',
	friendship_strength: 0.4
}

Graph links also excel when it comes to weighting relations. This can be done through a field on the graph table…

-- Create 4 'npc' records
CREATE |npc:1..5|;

FOR $npc IN SELECT * FROM npc {
    -- Give each npc 20 random interactions
    FOR $_ IN 0..20 {
      -- Looks for a random NPC, use array::complement to filter out self
      LET $counterpart = rand::enum(array::complement((SELECT * FROM npc), [$npc]));
      -- See if they have a relation yet
      LET $existing = SELECT * FROM knows WHERE in = $npc.id AND out = $counterpart.id;
      -- If relation exists, increase 'greeted' by one
      IF !!$existing {
        UPDATE $existing SET greeted += 1;
      -- Otherwise create the relation and set 'greeted' to 1
      } ELSE {
        RELATE $npc->knows->$counterpart SET greeted = 1;
      }
    };
};

SELECT
	id,
	->knows.{ like_strength: greeted, with: out } AS relations
	FROM npc;

Which NPC each NPC likes the most
[
	{
		id: npc:1,
		relations: [
			{
				like_strength: 8,
				with: npc:3
			},
			{
				like_strength: 8,
				with: npc:4
			},
			{
				like_strength: 4,
				with: npc:2
			}
		]
	},
	{
		id: npc:2,
		relations: [
			{
				like_strength: 10,
				with: npc:1
			},
			{
				like_strength: 4,
				with: npc:3
			},
			{
				like_strength: 6,
				with: npc:4
			}
		]
	},
	{
		id: npc:3,
		relations: [
			{
				like_strength: 6,
				with: npc:2
			},
			{
				like_strength: 3,
				with: npc:4
			},
			{
				like_strength: 11,
				with: npc:1
			}
		]
	},
	{
		id: npc:4,
		relations: [
			{
				like_strength: 7,
				with: npc:1
			},
			{
				like_strength: 6,
				with: npc:3
			},
			{
				like_strength: 7,
				with: npc:2
			}
		]
	}
]

…or through counting the number of edges.

-- Create 4 'npc' records
CREATE |npc:1..5|;

FOR $npc IN SELECT * FROM npc {
    -- Give each npc 20 random interactions
    FOR $_ IN 0..20 {
      -- Looks for a random NPC, use array::complement to filter out self
      LET $counterpart = rand::enum(array::complement((SELECT * FROM npc), [$npc]));
      RELATE $npc->greeted->$counterpart;
    };
};

SELECT
	count() AS like_strength,
	in AS npc,
	out AS counterpart
FROM greeted
GROUP BY npc, counterpart;

Which NPC each NPC likes the most
[
	{
		counterpart: npc:2,
		like_strength: 6,
		npc: npc:1
	},
	{
		counterpart: npc:3,
		like_strength: 9,
		npc: npc:1
	},
	{
		counterpart: npc:4,
		like_strength: 5,
		npc: npc:1
	},
	{
		counterpart: npc:1,
		like_strength: 9,
		npc: npc:2
	},
	{
		counterpart: npc:3,
		like_strength: 6,
		npc: npc:2
	},
	{
		counterpart: npc:4,
		like_strength: 5,
		npc: npc:2
	},
	{
		counterpart: npc:1,
		like_strength: 10,
		npc: npc:3
	},
	{
		counterpart: npc:2,
		like_strength: 7,
		npc: npc:3
	},
	{
		counterpart: npc:4,
		like_strength: 3,
		npc: npc:3
	},
	{
		counterpart: npc:1,
		like_strength: 6,
		npc: npc:4
	},
	{
		counterpart: npc:2,
		like_strength: 4,
		npc: npc:4
	},
	{
		counterpart: npc:3,
		like_strength: 10,
		npc: npc:4
	}
]

If this sort of metadata or weighting is necessary, then a graph table is the ideal solution.

Creating a graph relation

The following example is similar to the one above, except that this time the user record does not have a comments field, leaving it seemingly separate from the comment created on the next line. Instead, this time a RELATE statement is used to create a graph edge called wrote joining the two of them, and this is the table that holds the metadata mentioned above.

LET $new_user = CREATE ONLY user SET name = "User McUserson";
LET $new_comment = CREATE ONLY comment SET
    text = "I learned something new!",
    created_at = time::now();

RELATE $new_user->wrote->$new_comment SET
	location = "Arizona",
	os = "Windows 11",
	mood = "happy";

Now that a graph edge has been established, the arrow operator can be used to traverse this path. The versatility of this operator is one of the key advantages of using graph edges, as they can be traversed forward, backward, recursively, and more.

-- Go through each user and find comment(s) it wrote
SELECT ->wrote->comment FROM user;
-- Go through each comment and find the user(s) that wrote it
SELECT <-wrote<-user FROM comment;
-- Go through each comment, find the user(s) that wrote it,
-- and then find all of their comments
SELECT <-wrote<-user->wrote->comment FROM comment;

Other sources on querying graph relations

The arrow operator used to traverse graph edges is an intuitive way to visualize the direction(s) in which a query is traversing. As this page is devoted to an overview of when and how best to use graph relations, it does not go into the details of queries themselves. Many reference pages already exist in the SurrealDB documentation to learn this, including:

• The RELATE statement
• The page on idioms
• The SurrealDB Fundamentals course
• Aeon’s Surreal Renaissance, chapters 5 to 8 in particular

Tips and best practices with graph relations

The following sections detail some tips and best practices when using graph relations.

Define a table as a relation for better type safety and visual output

Defining a table as TYPE RELATION ensures that it can only be created in the context of a relation between two records.

Adding TYPE RELATION to a DEFINE TABLE statement is enough to ensure this behaviour.

DEFINE TABLE likes TYPE RELATION;

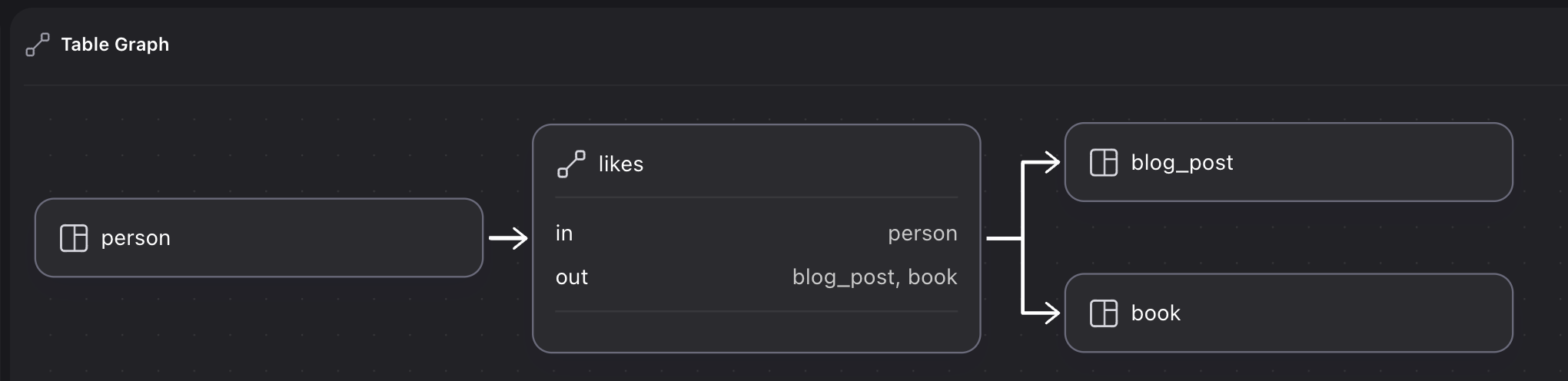

Specifying the record types at the in and out fields of a graph table will ensure that no other records can be joined to each other in this way.

DEFINE TABLE likes TYPE RELATION IN person OUT blog_post | book;

One other advantage to strictly defining a relation table is that this information can be picked up by Surrealist to be displayed in its Designer view.

Take the following queries that create some records and relate them to each other.

CREATE person:one, book:one, blog_post:one;
RELATE person:one->likes->book:one;
RELATE person:one->likes->blog_post:one;

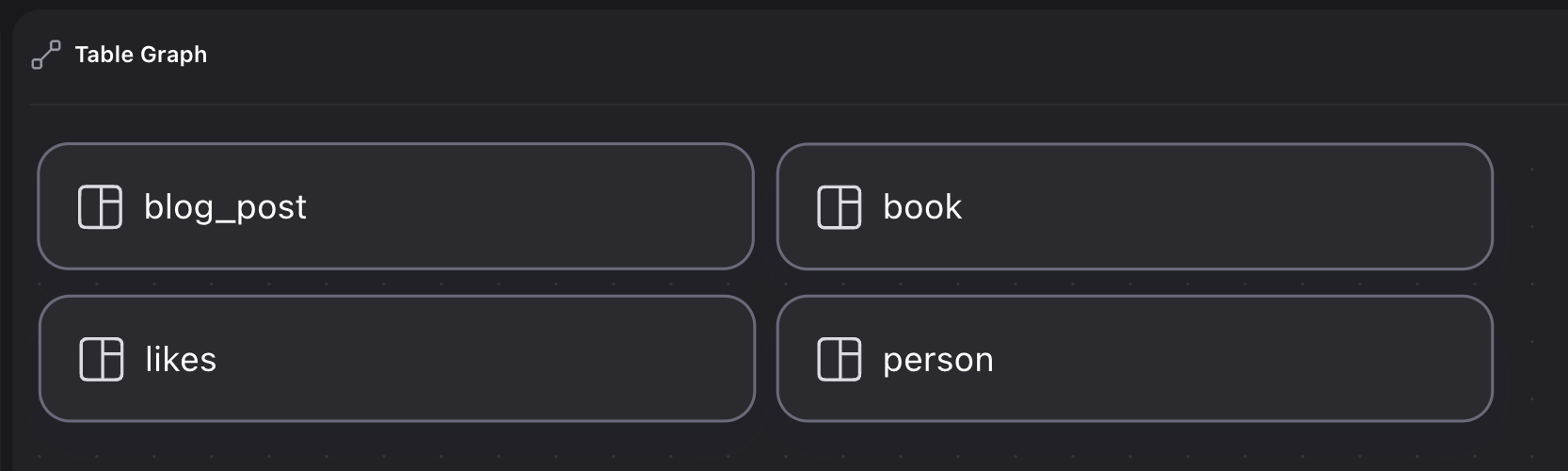

As the likes table is not yet defined as a relation, Surrealist is unable to determine anything about the table besides the fact that it exists, leading to the following view.

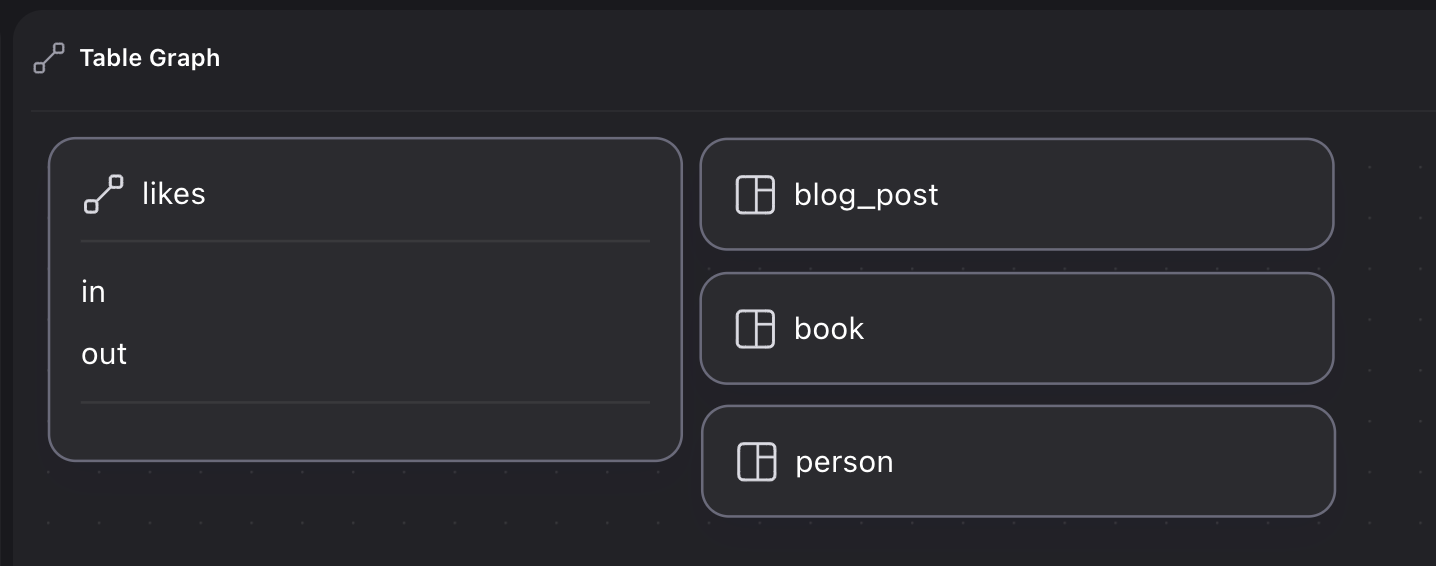

Defining the table as a TYPE RELATION will improve the layout somewhat by making it clear that likes is a graph table.

DEFINE TABLE likes TYPE RELATION;
CREATE person:one, book:one, blog_post:one;
RELATE person:one->likes->book:one;
RELATE person:one->likes->blog_post:one;

If the in and out fields are specified, however, Surrealist will now be able to graphically display the relation between all these records through the likes table.

DEFINE TABLE likes
	TYPE RELATION
	IN person
	OUT blog_post | book;
CREATE person:one, book:one, blog_post:one;
RELATE person:one->likes->book:one;
RELATE person:one->likes->blog_post:one;

Create a unique index if the graph relation is between equals

While most examples involve a clear subject and object relation, sometimes a graph edge represents a relation such as friendship, a partnership, sister cities, etc. in which this is not clear.

CREATE person:one, person:two;

-- Relate them like this?
RELATE person:one->friends_with->person:two;
-- Or like this?
RELATE person:two->friends_with->person:one;

To ensure that this relation cannot be established more than once, define a field made of the sorted in and out fields of the graph table, and define an index on it with a unique constraint.

DEFINE FIELD key ON TABLE friends_with VALUE <string>array::sort([in, out]);
DEFINE INDEX only_one_friendship ON TABLE friends_with FIELDS key UNIQUE;

With this constraint in place, no second friends_with can be initiated from the other side.

CREATE person:one, person:two;
RELATE person:one->friends_with->person:two;
RELATE person:two->friends_with->person:one;

Output of RELATE statements
-------- Query --------

[
	{
		id: friends_with:dblidwpc44qqz5bvioiu,
		in: person:one,
		key: '[person:one, person:two]',
		out: person:two
	}
]

-------- Query --------

"Database index `only_one_friendship` already contains '[person:one, person:two]',
with record `friends_with:dblidwpc44qqz5bvioiu`"

Querying a graph relation between equals

In a relation between equals like in the example above, it is never certain whether a specific person is friends with another due to a RELATE statement where it is the subject of the statement, or the object of the statement.

The <-> operator can be used in this case to traverse both the in and out fields of the friends_with table.

SELECT *, <->friends_with<->person AS friends FROM person;

This will now show each of the records involved in the relation, regardless of whether they are located at the in or out field of the friends_with graph table.

[
	{
		friends: [
			person:one,
			person:two
		],
		id: person:one
	},
	{
		friends: [
			person:one,
			person:two
		],
		id: person:two
	}
]

To complete this query to ensure that a record’s own ID does not show up inside the list of friends, the array::complement() function can be used.

SELECT *, array::complement(<->friends_with<->person, [id]) AS friends FROM person;

Output
[
	{
		friends: [
			person:two
		],
		id: person:one
	},
	{
		friends: [
			person:one
		],
		id: person:two
	}
]

For further details on this pattern, see this section in the page on the RELATE statement and this section of Chapter 7 of Aeon’s Surreal Renaissance.

Traverse directly from a record instead of using SELECT

As graph traversal takes place between records, the same syntax can be used directly from one or more record IDs without needing to use a SELECT statement. Take the following setup that once again creates a record linked to a comment:

CREATE ONLY user:mcuserson SET name = "User McUserson";
CREATE ONLY comment:one SET
    text = "I learned something new!",
    created_at = time::now();
CREATE ONLY cat:pumpkin SET name = "Pumpkin";

RELATE user:mcuserson->wrote->comment:one SET
	location = "Arizona",
	os = "Windows 11",
	mood = "happy";

RELATE user:mcuserson->likes->cat:pumpkin;

These graph edges can be traversed simply using the record name and the arrow syntax.

-- Equivalent to:
-- SELECT VALUE <-wrote<-user FROM ONLY comment:one;
comment:one<-wrote<-user;

-- Equivalent to:
-- SELECT VALUE ->likes->cat FROM ONLY user:mcuserson;
user:mcuserson->likes->cat;

Output
-------- Query --------

[
	user:mcuserson
]

-------- Query --------

[
	cat:pumpkin
]

To include various fields in a query that begins from a record ID, the destructuring operator can be used.

-- Equivalent to:
-- SELECT name, ->likes->cat AS cats FROM ONLY user:mcuserson;
user:mcuserson.{ name, cats: ->likes->cat };

Automatic flattening in graph queries

Automatic flattening is one of the nice features when using graph query syntax, and happens when two lookups follow each other or when a filter is used after a lookup. This can be seen in the following query that checks to see who an employee works for, followed by who that person works for, and then back down the same way.

CREATE
	// One president
	person:president,
	// Two managers
	person:manager1, person:manager2,
	// Four employees
	person:employee1, person:employee2, person:employee3, person:employee4;

// Employees work two to a manager, managers work two to a president
RELATE [person:manager1, person:manager2]->works_for->person:president;
RELATE [person:employee1, person:employee2]->works_for->person:manager1;
RELATE [person:employee3, person:employee4]->works_for->person:manager2;

[person:employee1, person:employee2, person:employee3, person:employee4]->works_for->person->works_for->person<-works_for<-person<-works_for<-person;

The output shows four arrays, each with four employees. Each employee has gone up the path to the president, and then back down from the president to return the employees that the president works for.

[
	[
		person:employee4,
		person:employee3,
		person:employee2,
		person:employee1
	],
	[
		person:employee4,
		person:employee3,
		person:employee2,
		person:employee1
	],
	[
		person:employee4,
		person:employee3,
		person:employee2,
		person:employee1
	],
	[
		person:employee4,
		person:employee3,
		person:employee2,
		person:employee1
	]
]

This can be done manually by doing a SELECT from the works_for table, returning the out value for the record if the in record matches. Each result can be mapped, after which the same query is called again.

However, because the first level returns an array for each record, each time this is called it will return an array that is further nested than the previous one.

[person:employee1, person:employee2, person:employee3, person:employee4]
	// Each $p is a single record: an array<record>
    .map(|$p| SELECT VALUE out FROM works_for WHERE in = $p.id)
	// Each $p is an array, so now you have to map each item inside that
    .map(|$p| $p.map(|$p| SELECT VALUE out FROM works_for WHERE in = $p.id))
    // Now an array<array<array<record>>>
	.map(|$p| $p.map(|$p| $p.map(|$p| SELECT VALUE in FROM works_for WHERE out = $p.id)))
    // Now an array<array<array<array<record>>>>
	.map(|$p| $p.map(|$p| $p.map(|$p| $p.map(|$p| SELECT VALUE in FROM works_for WHERE out = $p.id))));

The final result still shows the same employees, but not flattened into a single array as would be the case using the graph syntax.

[
	[
		[
			[
				[
					person:employee4,
					person:employee3
				],
				[
					person:employee2,
					person:employee1
				]
			]
		]
	],
	[
		[
			[
				[
					person:employee4,
					person:employee3
				],
				[
					person:employee2,
					person:employee1
				]
			]
		]
	],
	[
		[
			[
				[
					person:employee4,
					person:employee3
				],
				[
					person:employee2,
					person:employee1
				]
			]
		]
	],
	[
		[
			[
				[
					person:employee4,
					person:employee3
				],
				[
					person:employee2,
					person:employee1
				]
			]
		]
	]
]

The flattening in graph queries should be thought of as a maintaining of the original structure as opposed to a flattening that takes place after a query is executed. We can see this by calling flatten() at every step of the way instead of going further down into nested mapping.

[person:employee1, person:employee2, person:employee3, person:employee4]
	// Each $p is a single record: an array<record>
    .map(|$p| SELECT VALUE out FROM works_for WHERE in = $p.id).flatten()
	// Each $p is an array, so now you have to map each item inside that
    .map(|$p| SELECT VALUE out FROM works_for WHERE in = $p.id).flatten()
    // Now an array<array<array<record>>>
	.map(|$p| SELECT VALUE in FROM works_for WHERE out = $p.id).flatten()
    // Now an array<array<array<array<record>>>>
	.map(|$p| SELECT VALUE in FROM works_for WHERE out = $p.id).flatten();

The result is a true post-query flattening that removes all the nesting encountered along the way, placing each record encountered during each query inside a single array.

[
	person:employee3,
	person:employee4,
	person:employee2,
	person:employee1,
	person:employee3,
	person:employee4,
	person:employee2,
	person:employee1,
	person:employee3,
	person:employee4,
	person:employee2,
	person:employee1,
	person:employee3,
	person:employee4,
	person:employee2,
	person:employee1
]

Graph paths in schemas

While most examples in the documentation show how to traverse graph paths inside a SELECT statement, they can just as easily be defined as a field on a table.

DEFINE FIELD employers ON TABLE person VALUE SELECT VALUE <-employs<-company FROM ONLY $this;

CREATE person:1, person:2, company:1;
RELATE company:1->employs->person:1;
person:1.*;

However, note that the output of the query above shows an empty array for the employers field, as it was calculated at the point that person:1 was created, not when the RELATE statement was executed. The VALUE clause will only recalculate if a record is updated.

UPDATE person:1;

Output
[
	{
		employers: [
			company:1
		],
		id: person:1
	}
]

A computed field makes more sense in this case, as a computed field is calculated each time a record is queried, not just whenever it is created or updated.

DEFINE FIELD employers ON TABLE person COMPUTED <-employs<-company;

CREATE person:1, person:2, company:1;
RELATE company:1->employs->person:1;
person:1.*;

Output
{
	employers: [
		company:1
	],
	id: person:1
}

Using Surrealist to understand graph edges

Surrealist has an Explorer view that allows users to not just view records and their fields, but also traverse their relations one step at a time. This can be an effective tool to understand the internals of graph edges and queries on them.

Take the following example similar to the ones above, except that the user this time has two graph relations instead of one.

CREATE user:mcuserson SET name = "User McUserson";
CREATE comment:one SET
    text = "I learned something new!",
    created_at = time::now();
CREATE cat:pumpkin SET name = "Pumpkin";

RELATE user:mcuserson->wrote->comment:one SET
	location = "Arizona",
	os = "Windows 11",
	mood = "happy";

RELATE user:mcuserson->likes->cat:pumpkin;

The Explorer view inside Surrealist can then be used to understand a query like SELECT ->wrote->comment FROM user and what the database sees at each and every step of the way.

• Click on user (this is the FROM user part), then the individual user:mcuserson record.
• Click on the Relations tab. This has two outgoing relations, outgoing being the -> direction.
• The path in the query above then goes into wrote, so click on that to move into the single wrote record.
• At its Outgoing relations is a comment, which matches the ->comment part of the path.
• Clicking on this will lead to the comment the user wrote, finishing the query.

Reversing the process by beginning with the Explorer view is a good way to build up a query one step at a time when you are still getting used to the syntax.

RELATE can be used before records to relate exist

One characteristic of graph tables is that they can be created before the two records in question exist.

-- Works fine
RELATE person:one->likes->person:two;
-- Returns []
person:one->likes->person;
-- Finally create the 'person' records
CREATE person:one, person:two;
-- Now it returns [ person:two ]
person:one->likes->person;

If this is not desirable, the ENFORCED keyword can be added to a DEFINE TABLE statement.

DEFINE TABLE likes TYPE RELATION IN person OUT person ENFORCED;

Output
"The record 'person:one' does not exist"

However, certain patterns might make it desirable to use RELATE before creating a record. For example, a street in a city might have a set of addresses registered with a predictable record ID (such as an ID composed of a street number and name) but no houses at the location yet. A DEFINE FIELD statement can be used here that contains the path from the house to the street that will be calculated once the house is finally created.

DEFINE FIELD street ON house VALUE $this<-contains<-street;
CREATE street:frankfurt_road;
RELATE street:frankfurt_road->contains->[
    house:["Frankfurt Road", 200],
    house:["Frankfurt Road", 205],
    house:["Frankfurt Road", 210],
];

-- Twelve months later once the house is built and size is known...
CREATE house:["Frankfurt Road", 200] SET sq_m = 110.5;

Output
[
	{
		id: house:[
			'Frankfurt Road',
			200
		],
		sq_m: 110.5f,
		street: [
			street:frankfurt_road
		]
	}
]

Using recursive queries

Recursive queries allow traversal of a path down to a specific depth.

Take the following person records that are connected to each other via the child_of path.

CREATE |person:1..16|;
-- parents of person:1
RELATE person:1->child_of->[person:2, person:3];
-- grandparents of person:1
RELATE person:2->child_of->[person:4, person:5];
RELATE person:3->child_of->[person:6, person:7];
-- great-grandparents of person:1
RELATE person:4->child_of->[person:8, person:9];
RELATE person:5->child_of->[person:10, person:11];
RELATE person:6->child_of->[person:12, person:13];
RELATE person:7->child_of->[person:14, person:15];

Following the person:1 record down three depths (parents, grandparents, great-grandparents) can be done manually by repeating the ->child_of->person path as many times as required.

SELECT
    ->child_of->person AS parents,
    ->child_of->person->child_of->person AS grandparents,
    ->child_of->person->child_of->person->child_of->person AS great_grandparents
FROM ONLY person:1;

The recursive syntax can be used in this case to repeat a path as many times as desired instead of manually typing.

SELECT
    @.{1}->child_of->person AS parents,
    @.{2}->child_of->person AS grandparents,
    @.{3}->child_of->person AS grandparents
FROM ONLY person:1;

However, the recursive syntax goes beyond simply saving keystrokes on a regular graph query. It can also be used to return a single nested object that recurses a number of times as instructed down an indicated path.

-- Range to start at a depth of one, try to go down to depth of three
SELECT @.{3}.{
    id,
	-- At each depth, use this path to reach the next one
    parents: ->child_of->person.@
} FROM person:1;

person:1.{3}.{
    id,
    parents: ->child_of->person.@
};

While developed for graph relations in particular, this path can be used in any context.

For more details on SurrealDB’s recursive syntax, see the following pages:

• Idioms: recursive paths
• Chapter 8 of Aeon’s Surreal Renaissance

When links are deleted

As mentioned above, record links since version 2.2.0 have the ability to specify what behaviour should take place when a referencing link is deleted. Graph links have a simpler behaviour in which they will be deleted if at least of the linked records is deleted.

-- likes record created without problems
RELATE person:one->likes->person:two;
CREATE person:one, person:two;
DELETE person:one;
-- 'likes' record is now gone
SELECT * FROM likes;

A record link allows for more complex behaviour such as the following in which a linked record is removed from the comments field if it is deleted, but also adds the record ID to a field called deleted_comments for record keeping. For more information on these ON DELETE clauses, see the page on record references.

DEFINE FIELD comments ON person TYPE option<array<record<comment>>> REFERENCE ON DELETE THEN {
    UPDATE $this SET
        deleted_comments += $reference,
        comments -= $reference;
};
